Turbochargers Explained: How They Add Power and More
Honda Turbo Engine Production Line

Turbochargers are getting to be far more common on new autos in the automotive sector, partly due to escalating federal government gas effectiveness prerequisites. Turbochargers let more compact engines to convey the electrical power of a much larger the natural way aspirated engine. It does this without the need of sacrificing fuel economic climate underneath conservative driving problems.

Even so, do not hope improved gas efficiency if your turbocharged motor receives pushed spiritedly or tows large loads. When a turbo results in enhance (growing PSI), the engine necessitates drastically much more gasoline than operating at partial throttle and lessen rpm (revolutions for every moment, a measure of engine pace).

Acquiring 30+ mpg on the freeway whilst still owning a bit of enjoyment after in a while can make turbocharged 4-cylinder engines well known in specific automotive segments. The turbo dimension will ascertain the engine’s boost threshold, which is the rpm essential to begin spooling the turbo. Large turbochargers will offer a increased increase threshold and can make a lot more electricity. In distinction, compact turbochargers have a lower boost threshold but really don’t produce as a great deal horsepower and torque. Raising the measurement of the turbo will allow for for an increase in energy output at the value of putting a lot more anxiety on the motor and maybe shortening its lifespan.

Turbochargers Discussed:

How Does a Turbocharger Work?

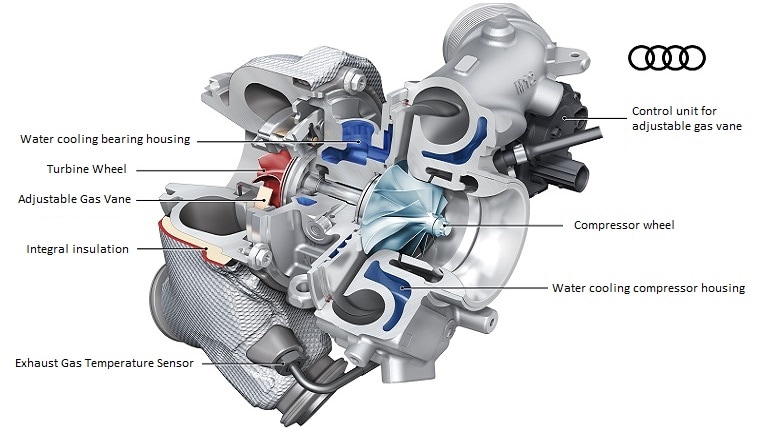

Audi Turbocharger Diagram

Turbochargers do the job by working with exhaust gas to spin a turbine that is connected to a 2nd turbine that sucks air into the engine. Feel of a turbocharger as an air compressor that operates on exhaust as an alternative of electric power. When making raise, turbos can improve the PSI within of the motor to strain greater than the atmospheric strain. A turbo requirements more than enough exhaust fuel to get over its improve threshold, which both equally throttle posture and engine rpm impression.

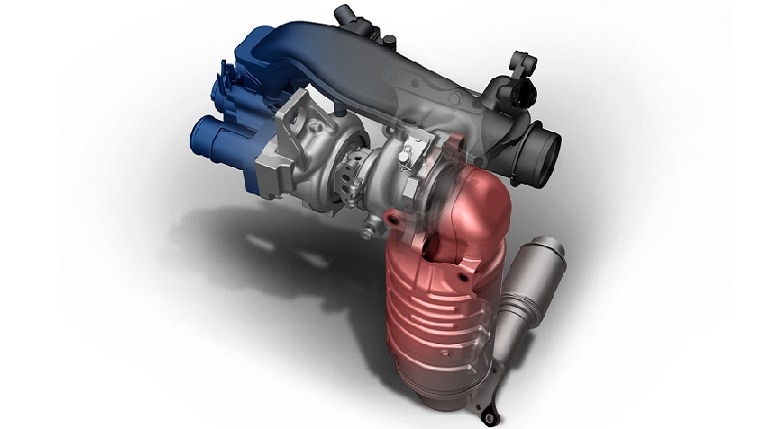

Turbocharger Exhaust and Intake Flow

The hot exhaust fuel heats the turbo raising the intake air temperature. Incredibly hot air has diminished density and less oxygen than cold air, which triggers lowered motor general performance. Prior to air enters the motor, it travels as a result of an intercooler to decrease the intake air temperature. Intercoolers generally utilize air-to-air cooling due to the fact it’s trustworthy and cheap. In some higher-effectiveness and constrained-place purposes, air-to-h2o intercoolers are top-quality because of to improved turbo responsiveness and compact footprint.

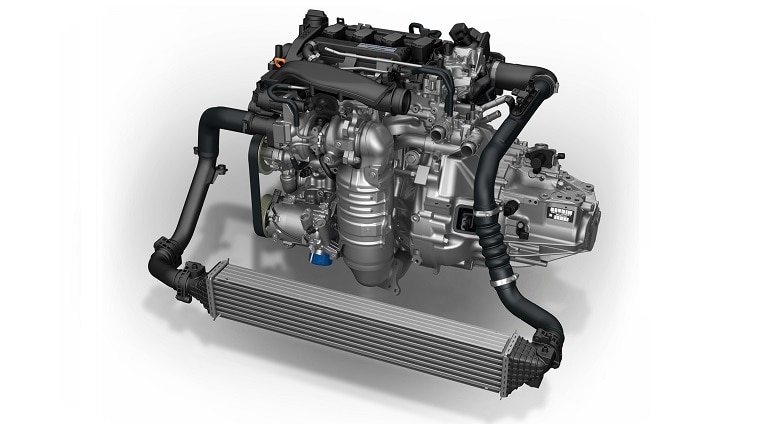

Honda Turbo Engine

Sorts of Turbochargers

There are 6 main turbocharger designs, and all have their rewards and disadvantages. A twin-turbo engine can supply a wider electric power band than a one turbo engine at the expenditure of extra complexity and income. Turbochargers are expensive, and the much more sophisticated layouts can result in a repair monthly bill costing 1000’s of bucks if they are unsuccessful.

One turbo – A single turbo setup is most frequently located on inline engines for the reason that all of the exhaust ports are on just one facet of the engine. A substantial single turbo can make as a lot boost if not a lot more than a twin-turbo set up. The tradeoff for utmost ability output is a superior improve threshold, creating a narrow power band.

Twin turbo – Twin turbos are commonly on V engines with two banking companies of exhaust ports. Most of the time, the turbos will reside on just about every side of the engine bay besides for engines that utilize a warm V format, and spot the turbos in the motor valley. Two turbos enable smaller sized turbines to be made use of, which can widen the electricity band and improve minimal-end torque because of to the reduced increase threshold.

Twin-scroll turbo – By making use of two different exhaust paths to the turbo, the influence of damaging strain due to valve overlap brings about less efficiency degradation. Pairing cylinders that never fire consecutively will help do away with interference in exhaust gas velocity. It qualified prospects to efficiency gains compared to a one-scroll turbo. Engines not at first developed with twin-scroll turbos will also require a new exhaust manifold to be compatible.

Variable twin-scroll turbo – A variable twin-scroll turbo builds upon the twin-scroll turbo’s effectiveness gains by adding a 2nd turbine. Turbines can operate independently to optimize exhaust velocity or at the same time deliver optimum ability. Both turbines function at increased motor rpm when the throttle posture reaches a specific place. Variable twin-scroll turbochargers mix the positive aspects of modest and huge turbos whilst getting rid of their drawbacks.

Variable geometry turbo – The addition of adjustable vanes around the turbine makes it possible for variable geometry turbos to offer a wide electric power band. The vanes are mostly shut all through very low motor rpm, making it possible for the turbo to spool swiftly. The vanes open up up at large engine rpm to cut down limits that would usually trigger a drop in overall performance at the engine’s redline. Variable geometry turbos produce fantastic overall performance at the price tag of added complexity, producing much more factors of failure.

Electric turbo – Want a massive turbo enhance devoid of the significant boost threshold? Electric-assisted turbos can assistance get the turbine spinning. It does this when the motor operates at very low rpm and doesn’t produce more than enough exhaust fuel to spin the turbo effectively. E-turbos insert complexity and weight considering the fact that an electrical motor with an extra battery is required.

Some turbos will entirely operate on electrical power, but they are continue to in the early phases of enhancement and just cannot match the energy output of exhaust-powered turbos. The battery essential to ability an electric turbo is significant, including fat and complexity to a motor vehicle. Makers use smaller electric powered turbos to assistance lower the boost threshold on the much larger exhaust-powered turbo.

Are Turbochargers Responsible?

With correct upkeep and great driving habits, a turbocharged motor should not have any important dependability fears as opposed to a obviously aspirated engine. Recurrent oil adjustments turn into exponentially a lot more important for a turbocharged motor simply because of the extra warmth a turbo provides to the engine bay. If oil is earlier its encouraged modify interval, it can cause sludge buildup that may perhaps block oil passages that feed the turbo.

Suppose the turbo isn’t effectively lubricated and cooled by the motor oil. In that case, it can lead to hurt and lead to a catastrophic failure that may perhaps wipe out the complete engine. As a end result, it can successfully leave the vehicle totaled. Earning confident a turbocharged motor stays content and balanced involves a handful of prerequisites.

Honda Turbo Engine Compartment

Turbocharger Trustworthiness Strategies:

  • Do not use reduced-octane fuel
  • Do not strengthen with chilly oil
  • Really don’t ground the accelerator at minimal rpm
  • Don’t spool the turbo prior to shutting off the engine

Never use minimal-octane gasoline – Premium fuel with 91 or 93 octane features much more resistance to engine knocking than standard gasoline with 87 octane. Turbocharged engines produce more warmth and tension than obviously aspirated engines and are extra vulnerable to detonation. Untimely ignition of the fuel, or detonation, can lead to enormous troubles. It can properly demolish an engine in intense and prolonged scenarios. Some turbo engines, even so, can run on reduce-octane gas. Always be confident to heed the manufacturer’s recommendations when it comes to fueling your auto.

Detonation occurs while the cylinder is on the compression stroke of the combustion cycle and has not attained the leading lifeless center yet. The situation with detonation is that gas combustion is preventing the compression stroke and inserting opposing forces on the engine’s rotating assembly instead of powering it by means of the combustion stroke.

Really do not boost with chilly oil – Chilly oil is thicker than sizzling oil and triggers added tension on the motor. Really do not depend on the engine temperature gauge, as this actions coolant temperature as a substitute of oil. If the automobile doesn’t use an oil temp gauge, it’s superior to play it secure and hold out a selected amount of time immediately after the motor coolant reaches functioning temperature.

Really do not ground the accelerator at reduced rpm – This primarily only applies to handbook transmissions. Which is for the reason that most automatic motor vehicles will induce the transmission to downshift to a reduce equipment. Accelerating a auto in its tallest equipment will call for the turbo to remain spooled lengthier beneath large-open up throttle in comparison to downshifting to a shorter gear reduced in the range. The lengthier a turbo stays spooled at greatest increase, the additional heat it will create. When this takes place, it can shorten the existence of motor factors ranging from the wiring harness to oil.

Don’t spool the turbo in advance of shutting off the engine – Driving any engine tricky or revving it just before shutting it off isn’t a excellent plan. This is correct no matter if the engine is turbocharged or not. A sizzling turbo is significantly helpful at oil coking and should be cooled down ahead of the motor stops operating. Some autos make the most of turbo timers, which allow the engine to remain operating for a few minutes soon after getting rid of the vital from the ignition. Another technique for cooling the turbo is an electrical pump that proceeds to circulate oil or coolant with out the require to maintain the motor functioning.

Turbocharger Professionals and Drawbacks

Turbochargers are efficient at including electric power and performance to engines, but they also include complexity. It is necessary to weigh the execs and disadvantages when choosing if a turbocharged motor will be the right decision. Turbos make an outstanding selection for drivers who benefit efficiency. They are also wonderful for drivers not ready to make a big sacrifice in gasoline performance underneath daily driving circumstances.

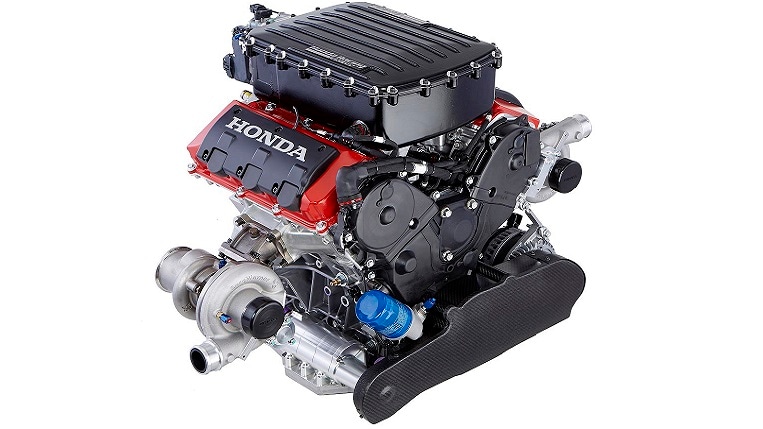

Honda HR35TT Twin Turbo V6 Engine

Turbocharger Pros

Improved power output – Turbochargers increase supplemental power to an motor and allow for a smaller sized engine to match the energy output of a bigger displacement motor. Increasing the turbo dimensions can increase extra ability and elevate the improve threshold, effectively narrowing the electric power band.

Greater gasoline financial system – Turbochargers can increase fuel overall economy by enabling a more compact displacement motor to generate adequate energy. Really do not assume to see quite a few excess miles per gallon when adding a turbo to a obviously aspirated engine. A the natural way aspirated 2.-liter 4-cylinder engine would likely get much better fuel economic system than a turbocharged 2.-liter 4-cylinder engine. But that essentially compares apples to oranges.

Turbocharger Negatives

Lessened throttle reaction – Turbochargers experience from diminished throttle response, acknowledged as enhance threshold and turbo lag. Raise threshold is the minimal rpm an motor requires to spool the turbocharger. Turbo lag is the time it takes to pressurize the air ducting that qualified prospects to the throttle human body when the motor rpm is previously mentioned the improve threshold.

Amplified engine complexity – A turbocharged engine works by using further elements in comparison to a naturally aspirated motor. The turbo, intercooler, blowoff valve, and increase hoses are just a couple of of the pieces needed to turbocharge an motor. These extra parts can make a cramped motor bay a very little claustrophobic and increase the amount of complexity involved in some repairs.

Increased fix price – Turbochargers aren’t low-cost, and it’s not unusual for them to expense upwards of $1,000. If a turbo fails, it can send out pieces of metallic into the engine and need a entire rebuild or alternative. A wrecked motor will charge hundreds of dollars to maintenance and may possibly often exceed the car’s worth.

Turbocharger Neutral

Modified exhaust be aware – Turbochargers disrupt the exhaust gasses flow and improve the exhaust sound. Comparing the exhaust take note of a Porsche 911 GT3 and a Porsche 911 Turbo is one of the most notable exhaust comparisons. Certainly, the induction noises deliver a good tradeoff for the muted exhaust observe. But, it is challenging to beat the screaming seem of a the natural way aspirated motor substantial in the rpm range.
